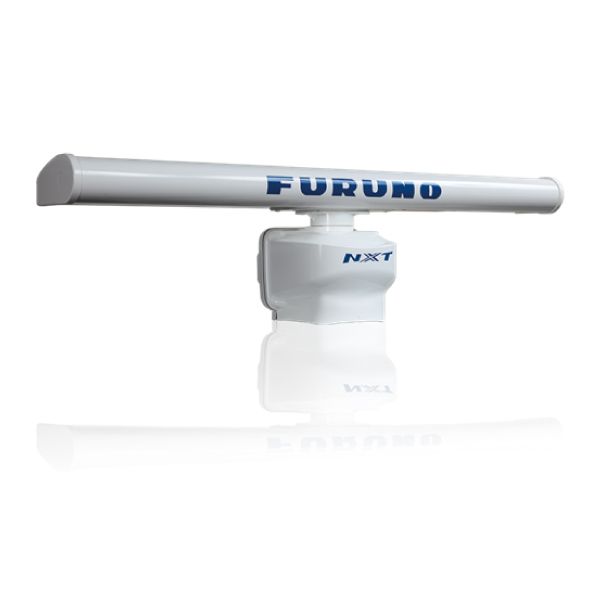

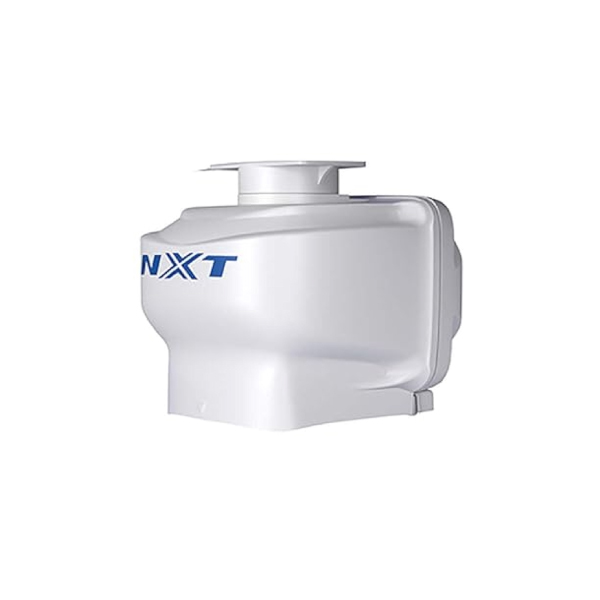

1. RADIATOR
1.1 Antenna type: Patch array antenna
1.2 Antenna length: 22-inch
1.3 Horizontal beam width: 3.9° typical (-3dB)
  RezBoost effective beam width*: 2.0° to 3.9°
  *RezBoost provides better echo resolution, in a manner similar to adjusting the beam width.
1.4 Vertical beam width: 25° (-3dB)
1.5 Polarization: Horizontal
1.6 Rotation: 24/36/48 rpm coupled with range or 24 rpm fixed (select)

2. RADAR FUNCTION
2.1 Tx frequency:
 Ch 1 – PON: 9380 MHz, QON: 9400 MHz
 Ch 2 – PON: 9400 MHz, QON: 9420 MHz
 Ch 3 – PON: 9420 MHz, QON: 9440 MHz
2.2 Output power: 25 W nominal
2.3 Intermediate frequency: 83.75/103.75 MHz
2.4 Range, Pulse length and Pulse Repetition Rate (PRR):
 - 0.0625 to 0.5 NM → 0.08/0.5 µs → 1100 Hz
 - 0.75 to 1 NM → 0.15/7.5 µs → 1100 Hz
 - 1.5 to 2 NM → 0.3/11 µs → 1100 Hz
 - 3 to 4 NM → 0.6/13 µs → 1100 Hz
 - 6 to 12 NM → 1.2/15 µs → 1100 Hz
 - 16 to 48 NM → 1.2/18 µs → 1100 Hz
2.5 Minimum range: 20 m
2.6 Range resolution: 20 m
2.7 Bearing accuracy: ±1°
2.8 Warm-up time: Null

3. INTERFACE
3.1 Number of port: 1 port, Ethernet, 100Base-TX, RJ45

4. POWER SUPPLY
12-24 VDC (10.8-31.2 V); 2.5-1.3 A (stand-by: 1.0-0.5 A)

5. ENVIRONMENTAL CONDITIONS
5.1 Ambient temperature: -25°C to +55°C (storage: -30°C to +70°C)
5.2 Relative humidity: 93% or less at +40°C
5.3 Degree of protection: IP26
5.4 Vibration: IEC 60945 Ed.4

6. UNIT COLOR
N9.5 (cover), PANTONE2945C (bottom)
